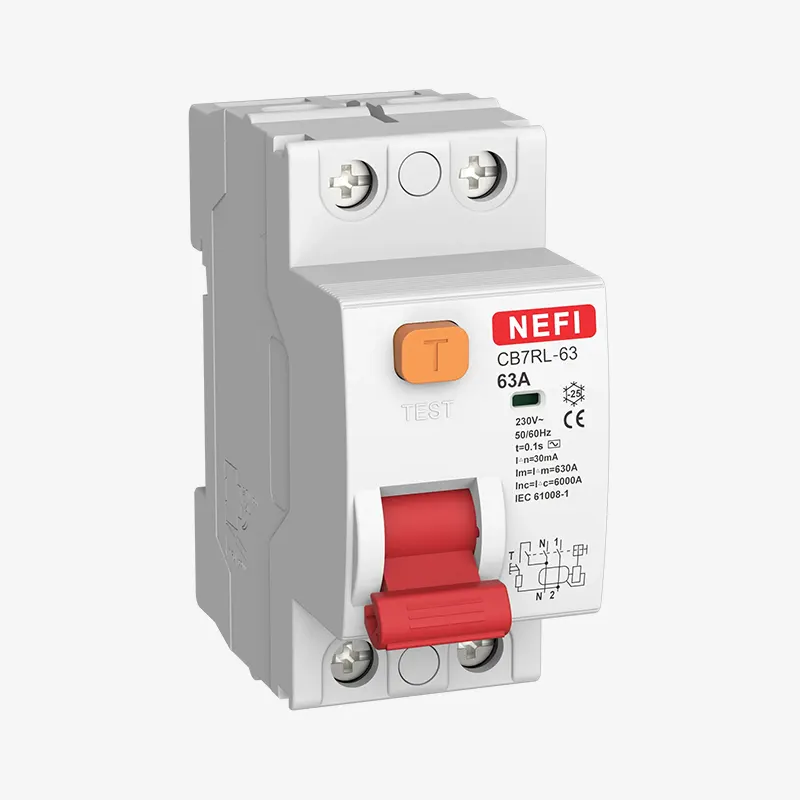

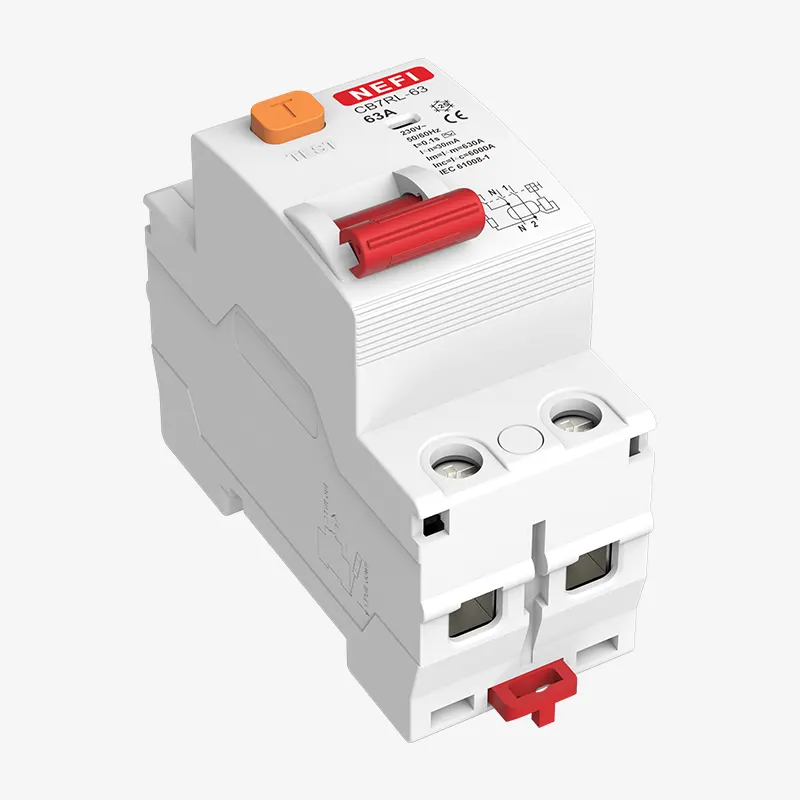

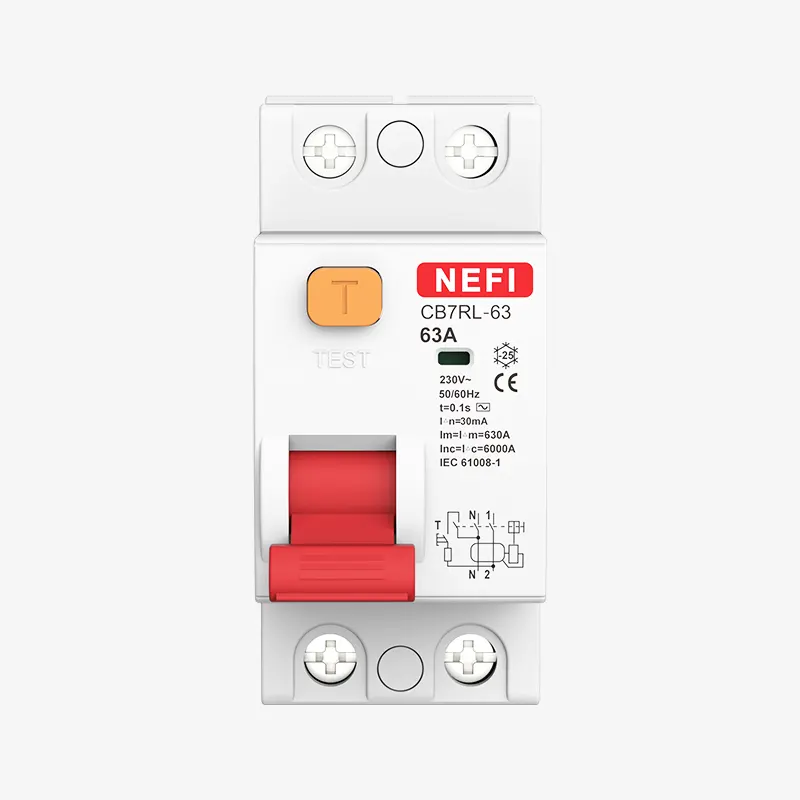

Skip to content CB7RL-63 series electromagnetic residual current circuit breaker is designed for AC distribution networks with a rated voltage of 230V or 400V, 50/60Hz, and a rated current up to 63A. It provides protection against indirect contact for personnel and helps prevent fire risks caused by insulation faults in circuits or equipment that lead to ground fault currents.
Function
Selection
Detectable wave form
Tripping is ensured for slowly increasing sinusoidal AC residual currents.
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly
or increasing slowly.
Tripping sensitivity
Tripping time
Instantaneous. It ensures instantaneous tripping (without time-delay).
Standard: IEC61008-1

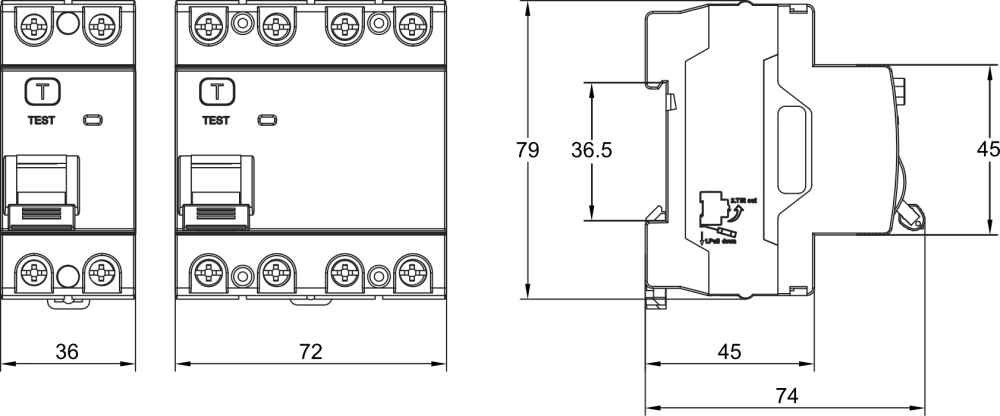

| CB7RL | – | 63 | 1P+N | 63 | 100mA | A Type |
| Model | Shell grade current | Number of poles | Rated current | Rated residual operating current | Type | |
| RCCB Electromagnetic | 63 | 1P+N 3P+N | 6,10,16, 20,25,32, 40,50,63 | Default: 30mA 100mA 300mA | Default: AC Type A Type |
| Type | Standard | IEC61008-1 | |
| Electrical features | Leakage type | Electromagnetic type | |
| Rated current In | A | 6, 10, 25, 32, 40, 50, 63 | |
| Type(wave form of the earth leakage sensed) | A, AC | ||
| Poles | P | 1P+N, 3P+N | |
| Rated voltage Ue | V | 230/400 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity Inc=I△c | A | 6000 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 | |
| Dielectric test voltage at ind.Freg.for 1min | Kv | 2.5 | |
| Mechanical features | Rated sensitivity I△n | A | 0.03, 0.1, 0.3 |
| Rated residual making and breaking capacity I△m | A | 500(In≤40A), 630(In=50A/63A) | |
| Pollution degree | 2 | ||
| Electrical life | times | 4000 | |
| Mechanical life | times | 8000 | |
| Protection degree | IP20 | ||
| Storage temperature | ℃ | -25~+70 | |
| Ambient temperature(with daily average≤35°℃) | ℃ | -5~+40 | |
| Installation | Terminal connection type | Cable/Pin-type busbar | |
| Terminal size top/bottom for cable | mm² | 25/35 | |
| AWG | 18-3/18-2 | ||
| Terminal size top/bottom for busbar | mm² | 10-16 | |
| AWG | 18-8/18-5 | ||
| Tightening torque | N*m | 2.5 | |
| In-lbs | 22 | ||
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device | ||
| Connection | From top or bottom |
