CC7 (09-630A)

Contactor

The CC7 series features a compact design and a clean, unified look across the product line. It is well-suited for frequent starting and control of AC motors, as well as remote circuit switching. When combined with thermal overload relays, it provides a reliable solution for industrial motor starting.

Standard:IEC 60947-1, IEC 60947-4-1

Get help ordering. Chat now or call
+86 180 7211 2655

Product Information

Parameters

Rated operation current Ie: 6A~630A
Rated operation voltage Ue: 220V~690V
Rated insulation voltage: 690V (CC7-M06~16A)

690V (CC7-09~110A)

1000V (CC7-120~630A)

Number of poles: 3P and 4P (only for CC7-M06~16A)
Installation method: Din rail and screw installation

Operation and Installation Conditions

Type	Operating and Installation Conditions
Installation category	Ⅲ
Pollution level	3
Protection degree	CC7-M06-16A: IP20; CC7-09~38: IP20; CC7-40~110: IP10; CC7-120-630: IP10
Ambient temperature	Limit of temperature:-35℃~+70℃, Normal temperature:-5℃~+40℃, The average no more than+35℃ within 24 hours.
Altitude	≤2000m
Ambient temperature	The maximum temperature is 70 ℃,the relative humidity of the air does not exceed 50%,and the temperature below 50% can allow higher relative humidity.If the temperature is 20℃, the air relative humidity could up to 90%, Special measures should be taken for occasional condensation due to humidity changes.
Installation position	Inclination between installation surface and vertical surface should not exceed±5°
Shock vibration	Products should be installed and used without significant shake,shock and vibration.

Selection

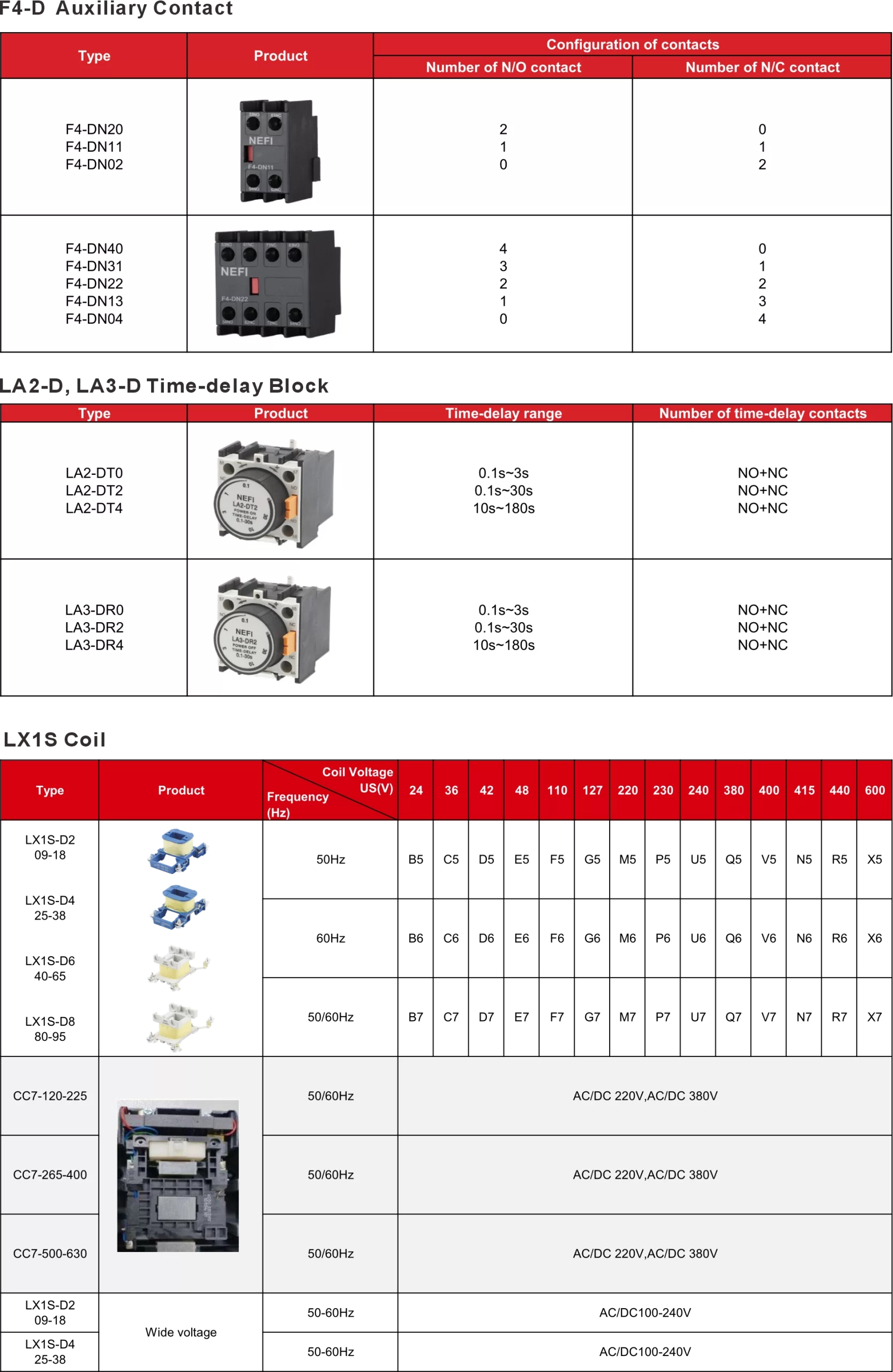

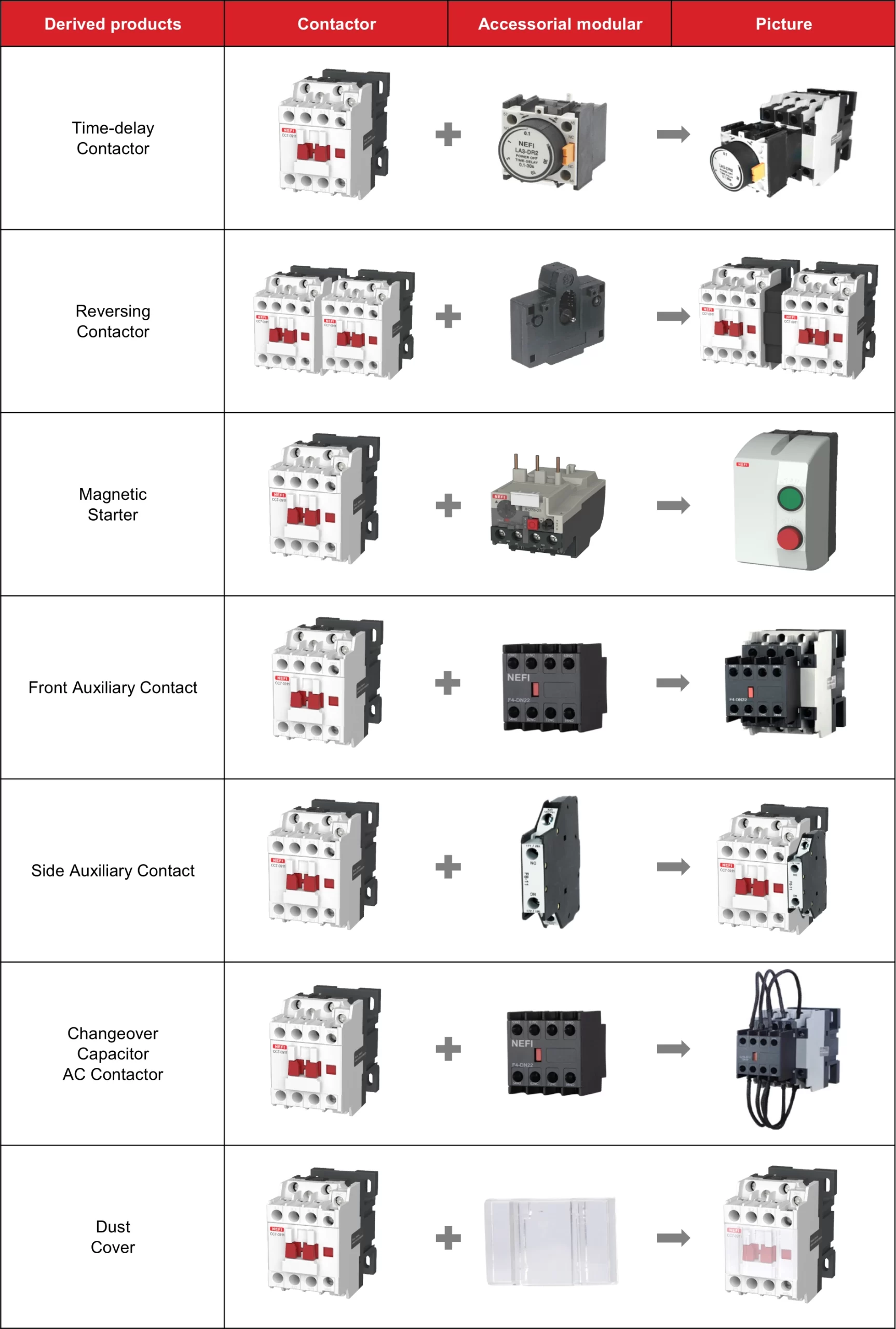

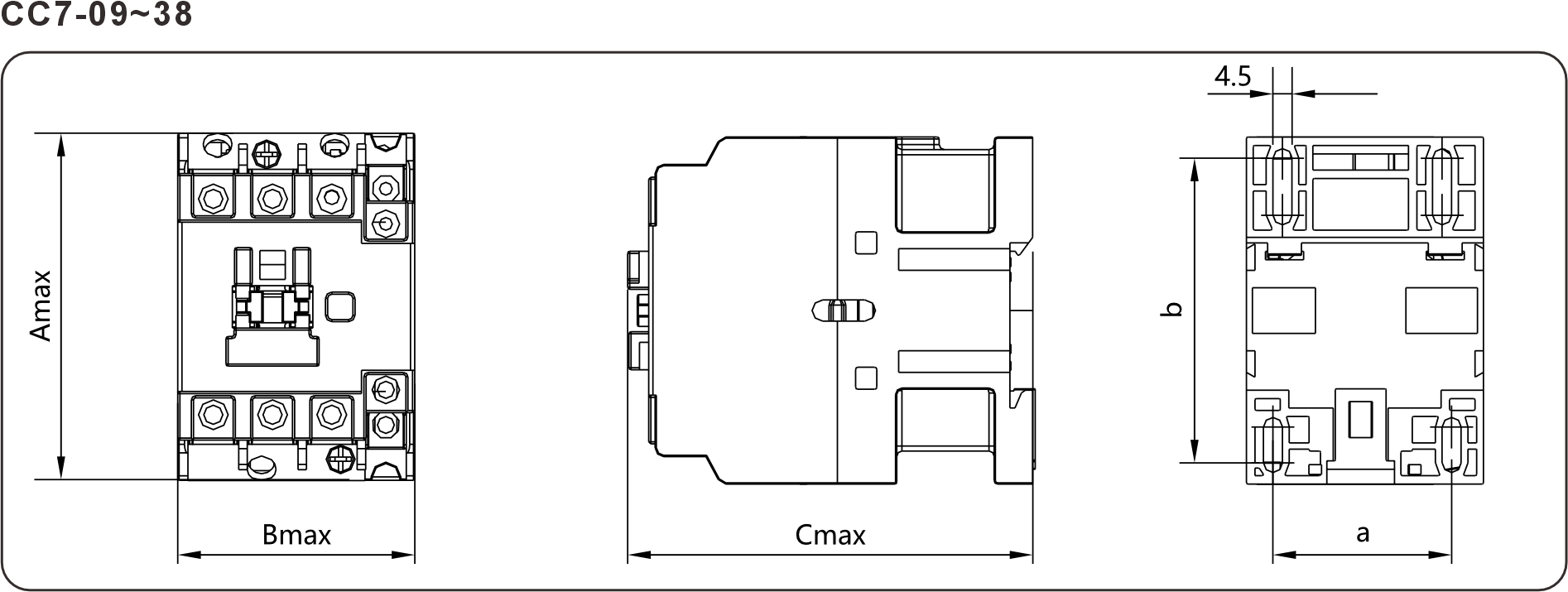

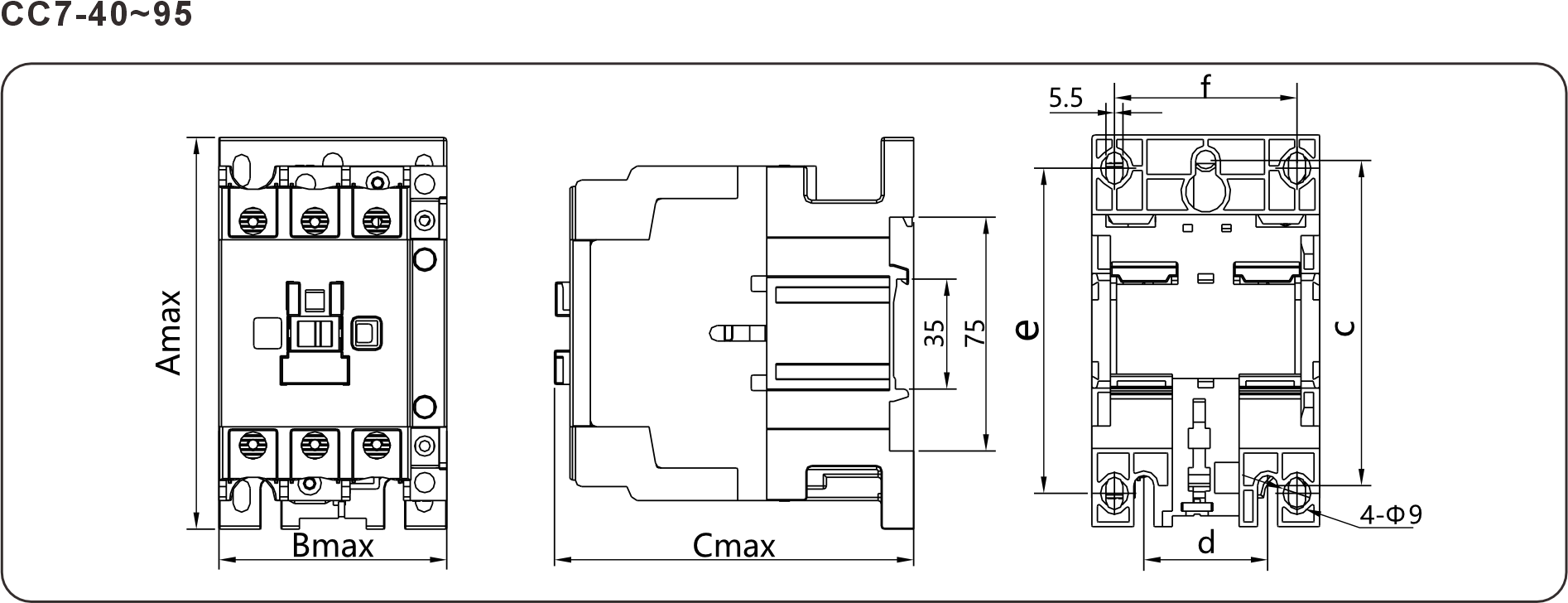

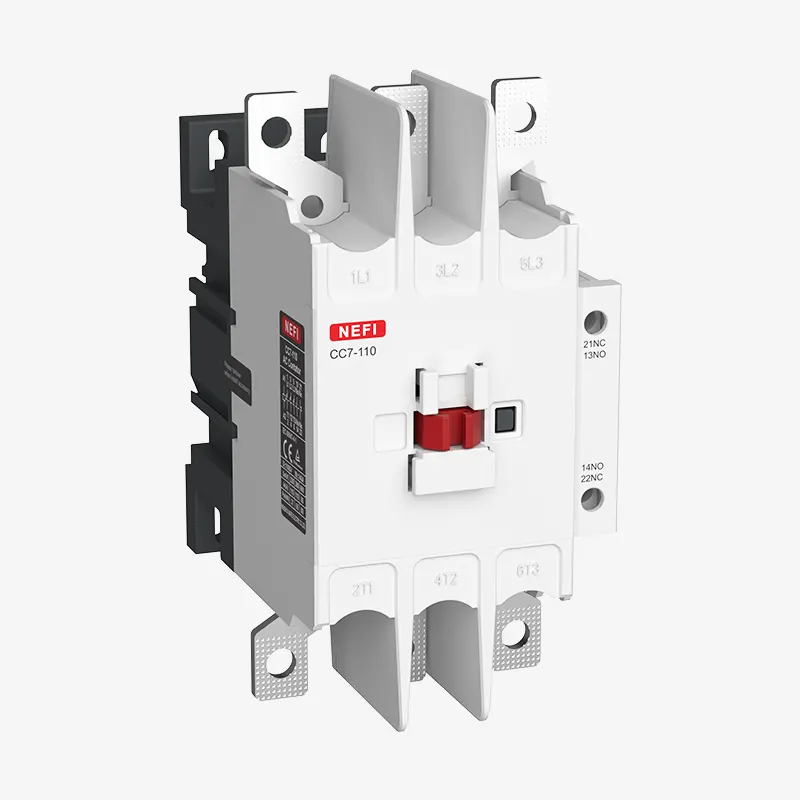

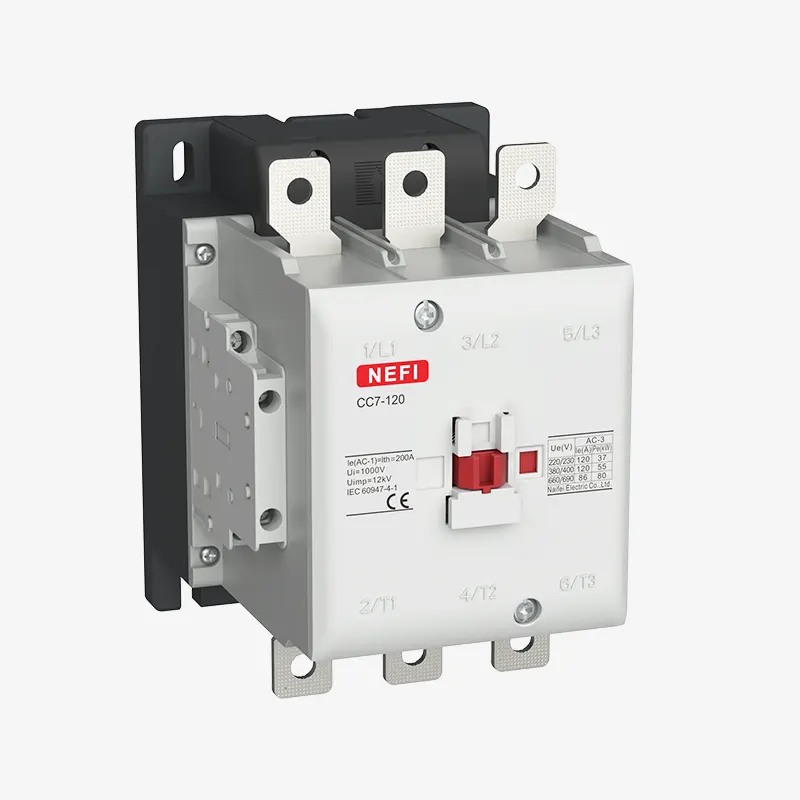

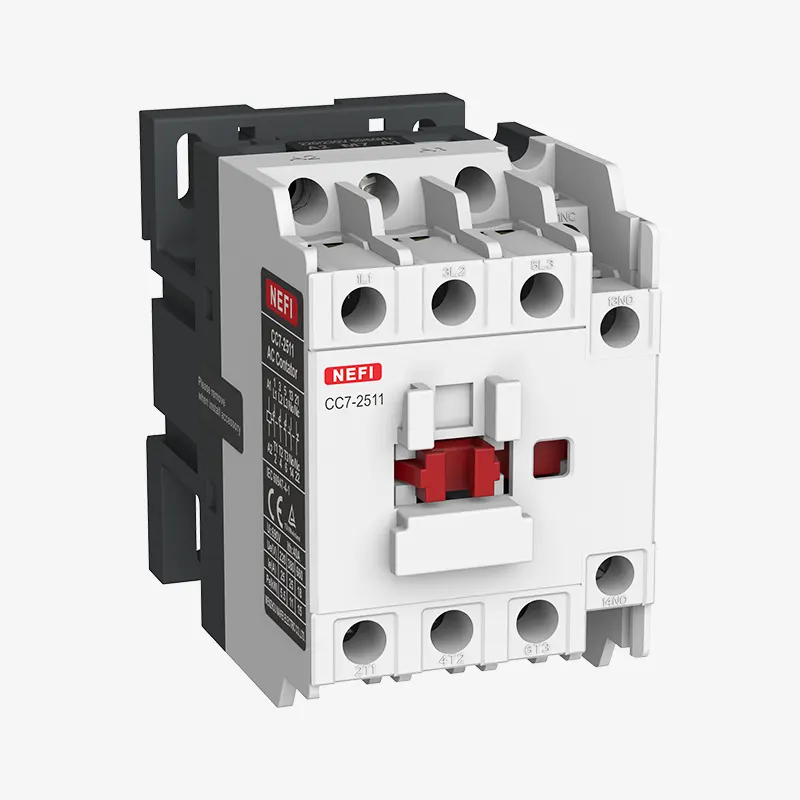

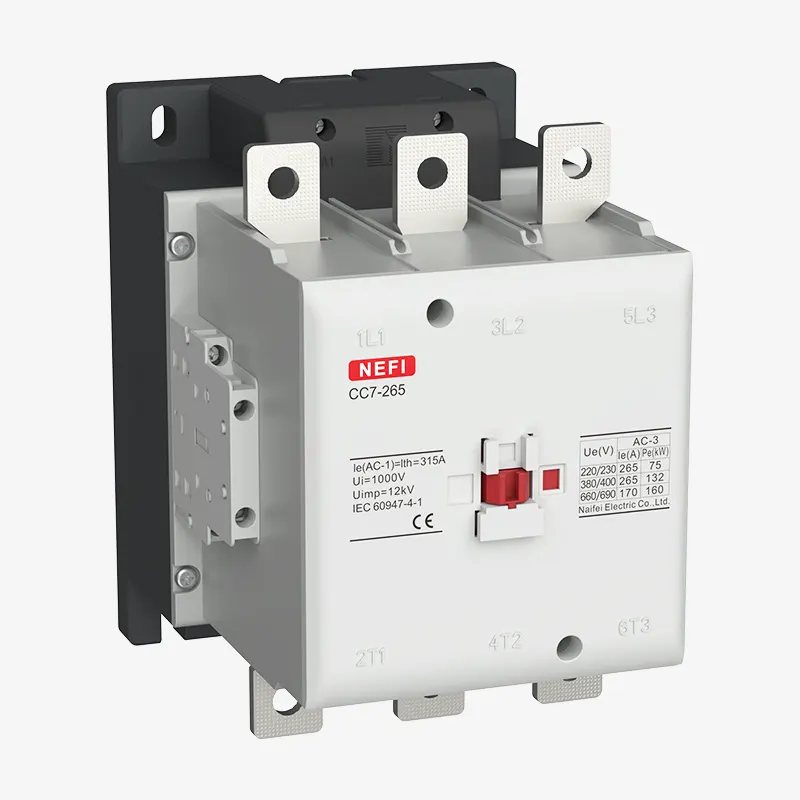

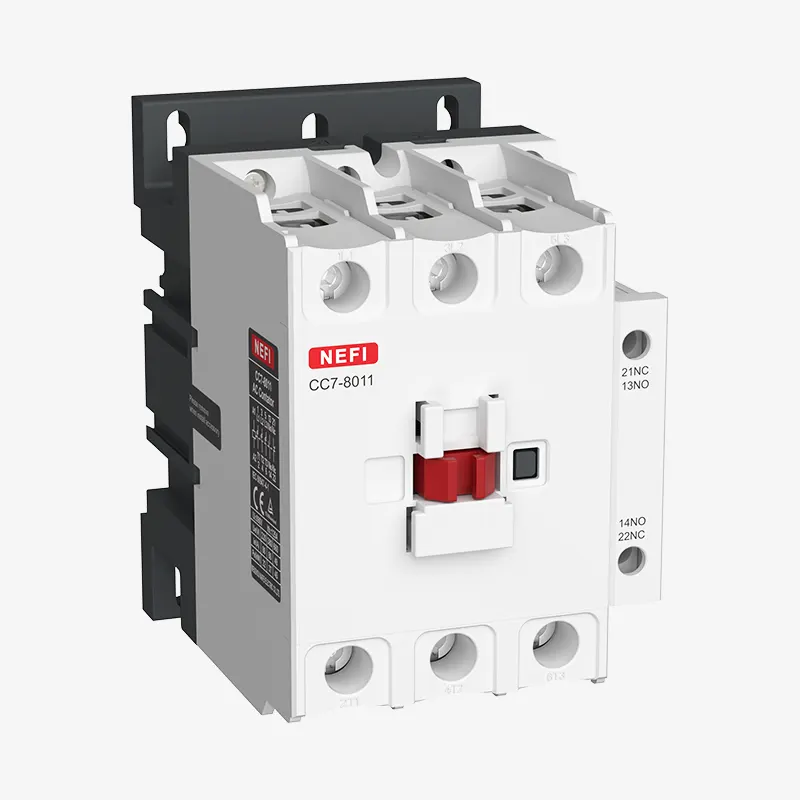

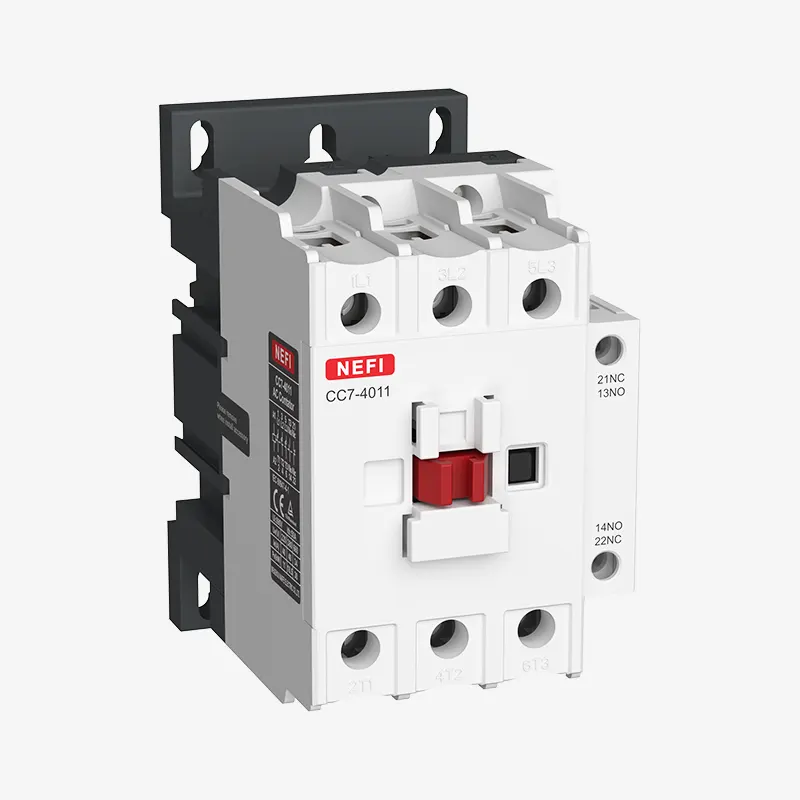

CC7 AC Contactor

CC7	–	12	230V	50Hz

Model		Rated current	Coil voltage	Frequency
Contactor		09, 12, 18, 25, 32, 38, 40, 50, 65, 80, 95, 110,120, 160, 185, 225, 265, 330, 400, 500, 630	24,48,110,127,220,230, 240,380,400,415	50,60.50/60

Note: 09A-110A products contain 1NO auxiliary contact and 1 NC auxiliary contact;

120A-630A products contain 2 NOauxiliary contacts and 2 NC auxiliary contacts

CC7-M Miniature AC Contactor

CC7	–	06M	10	230V	50Hz

Model		Rated current	Auxiliary contact	Coil voltage	Frequency
Contactor		06M 09M 12M 16M	10: 3 NO main contacts + 1 NO auxiliary contact 01: 3 NO main contacts + 1 NC auxiliary contact 08: 2 NO + 2 NC main contacts 04: 4 NO main contacts	24,36,48,110,127, 220,230,240,380, 400,415	50,60.50/60

CC7 AC Contactor Selection Table

No.	Three-phase asynchronous motor power KW(AC-3)			Max Operating Current (AC-3380V/400V)	Contactor Model	The number of auxiliary products
No.	220V/230V	380V/400V	380V/400V	Max Operating Current (AC-3380V/400V)	Contactor Model	Normally Open (NO)	Normally Closed (NC)
1	1.5	2.2	3	6	CC7-M0610	1	0
2	1.5	2.2	3	6	CC7-M0601	0	1
3	2.2	4	4	9	CC7-M0910	1	0
4	2.2	4	4	9	CC7-M0901	0	1
5	2.2	4	5.5	9	CC7-09	1	1
6	3	5.5	4	12	CC7-M1210	1	0
7	3	5.5	4	12	CC7-M1201	0	1
8	3	5.5	7.5	12	CC7-12	1	1
9	3	7.5	7.5	16	CC7-M1610	1	0
10	3	7.5	7.5	16	CC7-M1601	0	1
11	4	7.5	10	18	CC7-18	1	1
12	5.5	11	15	25	CC7-25	1	1
13	7.5	15	18.5	32	CC7-32	1	1
14	11	18.5	30	40	CC7-40	1	1
15	15	22	37	50	CC7-50	1	1
16	18.5	30	37	65	CC7-65	1	1
17	22	37	37	75	CC7-80	1	1
18	22	37	45	85	CC7-95	1	1
19	25	45	45	100	CC7-110	1	1
20	37	55	80	120	CC7-120	2	2
21	45	75	100	160	CC7-160	2	2
22	55	90	100	185	CC7-185	2	2
23	63	110	110	225	CC7-225	2	2
24	75	132	160	265	CC7-265	2	2
25	90	160	200	330	CC7-330	2	2
26	132	200	300	400	CC7-400	2	2
27	160	250	335	500	CC7-500	2	2
28	200	335	350	630	CC7-630	2	2

CC7 Coil Voltage Specification Table

CC7-M06~M16
AC (V) 50/60Hz	24	36	48	110	127	220	380	415
DC (V)	24	36	48	110	127	220	—	—
CC7-09~110
AC (V) 50Hz	24	36	48	110	127	220	380	415
AC (V) 60Hz	24	36	48	110	127	220	380	415
AC (V) 50/60Hz	24	36	48	110	127	220	380	415
CC7-120~265
AC/DC (V) 50Hz	24	—	48	110	127	220	380	—
AC/DC (V) 60Hz	24	—	48	110	127	220	380	—
AC/DC (V) 50/60Hz	24	—	48	110	127	220	380	—
CC7-330~630
AC/DC (V) 50Hz	—	—	48	110	127	220	380	—
AC/DC (V) 60Hz	—	—	48	110	127	220	380	—
AC/DC (V) 50/60Hz	—	—	48	110	127	220	380	—

Technical Parameters

Type			CC7-09	CC7-12	CC7-18	CC7-25	CC7-32	CC7-38	CC7-40	CC7-50	CC7-65	CC7-80	CC7-95	CC7-110
Poles			3P
Rated insulation voltage(Ui)		V	690
Rated operating voltage(Ue)		V	380/400,660/690
Rated themal curent(Ith),AC-1			20	20	32	40	50	50	50	60	80	125	125	140
Rated operation curent(le)	AC-3,380/400V	A	9	12	18	25	32	38	40	50	65	80	95	110
	AC-3,660/690V	A	6.6	8.9	12	18	22	22	34	39	42	49	49	86
	AC-4,380/400V	A	3.5	5	7.7	8.5	12	14	18.5	24	28	37	44	51
	AC-4,660/690V	A	1.5	2	3.8	4.4	7.5	8.9	9	12	14	17.3	21.3	25
Rated operational power(Pe)	AC-3,380/400V	kW	4	5.5	7.5	11	15	18.5	18.5	22	30	37	45	55
	AC-3,660/690V	kW	5.5	7.5	10	15	18.5	18.5	30	33	37	45	45	80
	AC-4,380/400V	KW	1.5	2.2	3.3	4	5.4	5.5	7.5	11	15	18.5	22	25.5
	AC-4,660/690V	kW	1.1	1.5	3	3.7	5.5	6	7.5	10	11	15	18.5	21.7
Mechanical life		10000 times	1200			1000			900			650
Electrical life	AC-3		110				90					65
	AC-4		22				22		17			11
Frequency of operation	AC-3	times/ hour	1200				600
	AC-4		300				300
Connecting capability of main circuit teminal
Flexible wire	1 wire	mm²	1…4			1.5.…6			2.5.…25			4…50
No terminal	2 wire	mm²	1…4			1.5.…6			2.5.….16			4…25
Flexible wire	1 wire	mm²	1…4			1..6			2.5.….25			4…50
With teminals	2 wire	mm²	1…2.5			1…4			2.5..10			4…16
Hard wire	1 wire	mm²	1…4			1.5.…6	1.5.…10		2.5.…25			4…50
No teminal	2 wire	mm²	1…4			1.5..			2.5.…10			4…25
Fastening torque		Nm	1.2			1.8			5			9
Coil
Rated control voltage(Us)	50Hz	V	24,36,48,110,127,220/230,240,380/400,415,440
	50/60Hz	V	24,36,48,110,127,220/230,240,380/400,415,440
Alowed control circuit voltage(Us)	Operation	V	Installation inclination angle±22.5°:85%~110%Us;Installation inclination angle±5°:70%~120%
	Release	V	Installation inclination angle±22.5°:20%~75%Us;Installation inclination angle±5°:20%~65%
Power consumption ofcail	Actuation	VA	60			70			200			200
	Keep	VA	6-9.5			6-9.5			15-20			15-20
	Consumption	W	1-3			1-3			6-10			6-10
Auxiliary contacts
Auxiliary contacts specification		A	11
Rated themal current (Ith)		A	10
Rated operating voltage (Ue)	AC	V	380
	DC	V	220
Rated control capacity	AC-15	VA	360
	DC-13	W	33

Model				CC7-120	CC7-160	CC7-185	CC7-225	CC7-265	CC7-330	CC7-400	CC7-500	CC7-630
Frame grade				120-225				265-400			500-630
Agreed free air heating current(A)				200	200	275	275	315	380	450	630	700
Rated insulation voltage(V)				1000
Rated impulse withstand voltage(kV)				12
Poles				3P
Rated operating current le(A)	AC-1			200	200	275	275	315	380	450	630	700
	200V/230V	AC-3		120	160	185	225	265	330	400	500	630
		AC-4		120	160	160	185	265	330	330	500	500
	380V/400V	AC-3		120	160	185	225	265	330	400	500	630
		AC-4		120	160	160	185	265	330	330	500	500
	660V/690V	AC-3		86	107	107	118	170	235	303	353	400
		AC-4		86	107	107	107	137	170	235	303	353
Rated control power	AC-3(kW)	200V/230V		37	45	55	63	75	90	132	160	200
		380V/400V		55	75	90	110	132	160	200	250	335
		660V/690V		80	100	100	110	160	200	300	335	350
Electrical life(10,000 times		AC-3		120				80
Electrical ife(10,000 times				600
Main contact structure				3NO
Number of auxiliary contacts				2NO+2NC

Control circuit		Model		CC7-120	CC7-160	CC7-185	CC7-225	CC7-265	CC7-330	CC7-400	CC7-500	CC7-630
Main circuit wiring	Cable connection (mm²)	Prefabricated soft wire	1	10~150			–
			2	10~75			–
		Hard wire	1	10~150			50~240
			2	10~75			50~240
	Fastening screw size			M6	M8		M10
	Fastening torque(N ·m)			10			14
Control circuit connection	Cable connection (mm²)	Prefabricated soft wire	1	1~4
			2	1~2.5
		Hard wire	1	1~4
			2	1~4
	Fastening screw size			M3.5
	Fastening torque(N ·m)			1.2
Operating range		Pull-in		(75%~120%)Us
		Release		(20%~70%)Us
