Contactor

The CC7 series features a compact design and a clean, unified look across the product line. It is well-suited for frequent starting and control of AC motors, as well as remote circuit switching. When combined with thermal overload relays, it provides a reliable solution for industrial motor starting.

Standard:IEC 60947-1, IEC 60947-4-1

Get help ordering. Chat now or call
+86 180 7211 2655

Product Information

Parameters

• Rated operation current Ie: 6A~630A
• Rated operation voltage Ue: 220V~690V
• Rated insulation voltage: 690V (CC7-M06~16A)
690V (CC7-09~110A)
1000V (CC7-120~630A)
• Number of poles: 3P and 4P (only for CC7-M06~16A)
• Installation method: Din rail and screw installation

Operation and Installation Conditions

Type	Operating and Installation Conditions
Installation category	Ⅲ
Pollution level	3
Protection degree	CC7-M06-16A: IP20; CC7-09~38: IP20; CC7-40~110: IP10; CC7-120-630: IP10
Ambient temperature	Limit of temperature:-35℃~+70℃, Normal temperature:-5℃~+40℃, The average no more than+35℃ within 24 hours.
Altitude	≤2000m
Ambient temperature	The maximum temperature is 70 ℃,the relative humidity of the air does not exceed 50%,and the temperature below 50% can allow higher relative humidity.If the temperature is 20℃, the air relative humidity could up to 90%, Special measures should be taken for occasional condensation due to humidity changes.
Installation position	Inclination between installation surface and vertical surface should not exceed±5°
Shock vibration	Products should be installed and used without significant shake,shock and vibration.

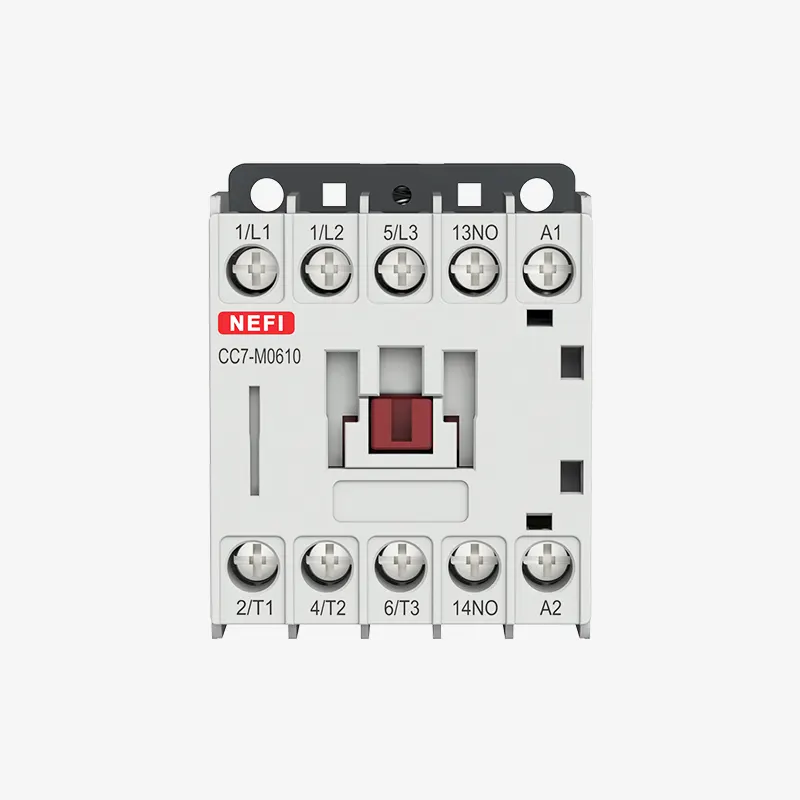

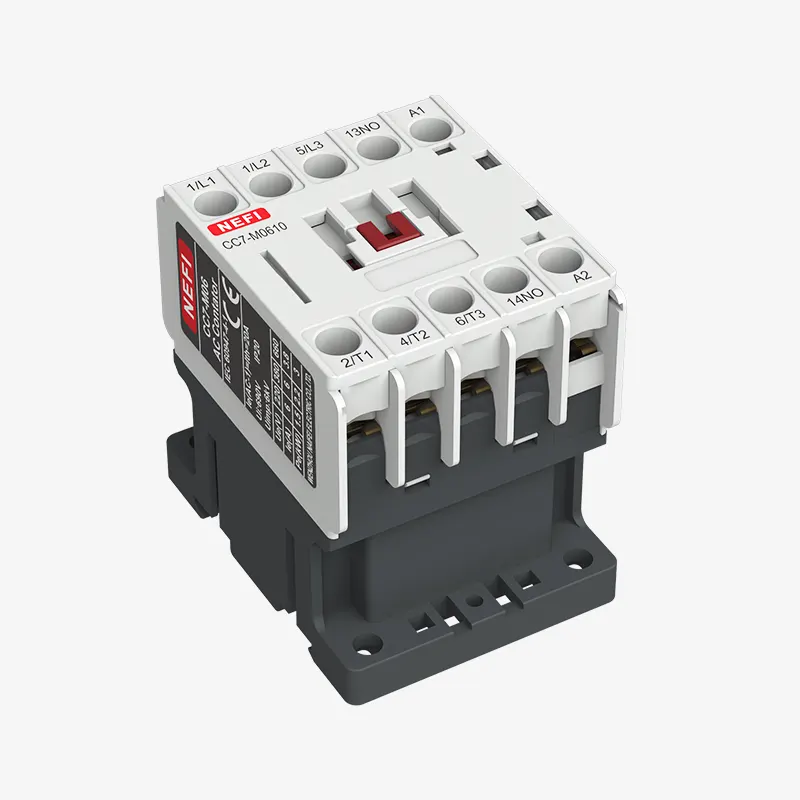

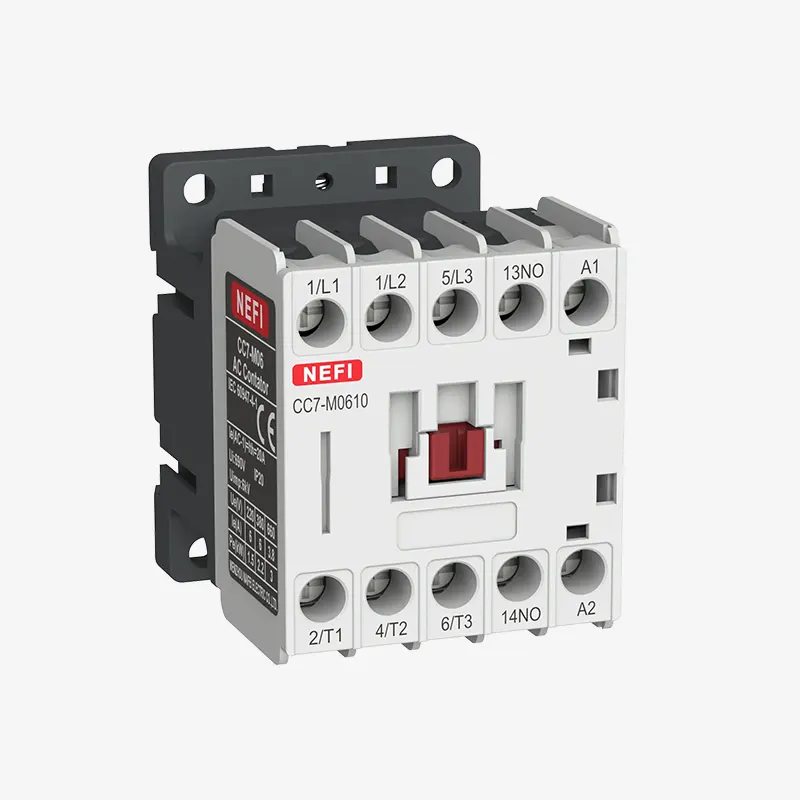

CC7-M Miniature AC Contactor

CC7	–	06M	10	230V	50Hz
Model		Rated current	Auxiliary contact	Coil voltage	Frequency
Contactor		06M 09M 12M 16M	10: 3 NO main contacts + 1 NO auxiliary contact 01: 3 NO main contacts + 1 NC auxiliary contact 08: 2 NO + 2 NC main contacts 04: 4 NO main contacts	24,36,48,110,127, 220,230,240,380, 400,415	50,60.50/60

CC7 AC Contactor Selection Table

No.	Three-phase asynchronous motor power KW(AC-3)			Max Operating Current (AC-3380V/400V)	Contactor Model	The number of auxiliary products
No.	220V/230V	380V/400V	380V/400V	Max Operating Current (AC-3380V/400V)	Contactor Model	Normally Open (NO)	Normally Closed (NC)
1	1.5	2.2	3	6	CC7-M0610	1	0
2	1.5	2.2	3	6	CC7-M0601	0	1
3	2.2	4	4	9	CC7-M0910	1	0
4	2.2	4	4	9	CC7-M0901	0	1
5	2.2	4	5.5	9	CC7-09	1	1
6	3	5.5	4	12	CC7-M1210	1	0
7	3	5.5	4	12	CC7-M1201	0	1
8	3	5.5	7.5	12	CC7-12	1	1
9	3	7.5	7.5	16	CC7-M1610	1	0
10	3	7.5	7.5	16	CC7-M1601	0	1
11	4	7.5	10	18	CC7-18	1	1
12	5.5	11	15	25	CC7-25	1	1
13	7.5	15	18.5	32	CC7-32	1	1
14	11	18.5	30	40	CC7-40	1	1
15	15	22	37	50	CC7-50	1	1
16	18.5	30	37	65	CC7-65	1	1
17	22	37	37	75	CC7-80	1	1
18	22	37	45	85	CC7-95	1	1
19	25	45	45	100	CC7-110	1	1
20	37	55	80	120	CC7-120	2	2
21	45	75	100	160	CC7-160	2	2
22	55	90	100	185	CC7-185	2	2
23	63	110	110	225	CC7-225	2	2
24	75	132	160	265	CC7-265	2	2
25	90	160	200	330	CC7-330	2	2
26	132	200	300	400	CC7-400	2	2
27	160	250	335	500	CC7-500	2	2
28	200	335	350	630	CC7-630	2	2

CC7 Coil Voltage Specification Table

CC7-M06~M16
AC (V) 50/60Hz	24	36	48	110	127	220	380	415
DC (V)	24	36	48	110	127	220	—	—
CC7-09~110
AC (V) 50Hz	24	36	48	110	127	220	380	415
AC (V) 60Hz	24	36	48	110	127	220	380	415
AC (V) 50/60Hz	24	36	48	110	127	220	380	415
CC7-120~265
AC/DC (V) 50Hz	24	—	48	110	127	220	380	—
AC/DC (V) 60Hz	24	—	48	110	127	220	380	—
AC/DC (V) 50/60Hz	24	—	48	110	127	220	380	—
CC7-330~630
AC/DC (V) 50Hz	—	—	48	110	127	220	380	—
AC/DC (V) 60Hz	—	—	48	110	127	220	380	—
AC/DC (V) 50/60Hz	—	—	48	110	127	220	380	—

Technical Parameters

Type			CC7-09	CC7-12	CC7-18	CC7-25	CC7-32	CC7-38	CC7-40	CC7-50	CC7-65	CC7-80	CC7-95	CC7-110
Poles			3P
Rated insulation voltage(Ui)		V	690
Rated operating voltage(Ue)		V	380/400,660/690
Rated themal curent(Ith),AC-1			20	20	32	40	50	50	50	60	80	125	125	140
Rated operation curent(le)	AC-3,380/400V	A	9	12	18	25	32	38	40	50	65	80	95	110
	AC-3,660/690V	A	6.6	8.9	12	18	22	22	34	39	42	49	49	86
	AC-4,380/400V	A	3.5	5	7.7	8.5	12	14	18.5	24	28	37	44	51
	AC-4,660/690V	A	1.5	2	3.8	4.4	7.5	8.9	9	12	14	17.3	21.3	25
Rated operational power(Pe)	AC-3,380/400V	kW	4	5.5	7.5	11	15	18.5	18.5	22	30	37	45	55
	AC-3,660/690V	kW	5.5	7.5	10	15	18.5	18.5	30	33	37	45	45	80
	AC-4,380/400V	KW	1.5	2.2	3.3	4	5.4	5.5	7.5	11	15	18.5	22	25.5
	AC-4,660/690V	kW	1.1	1.5	3	3.7	5.5	6	7.5	10	11	15	18.5	21.7
Mechanical life		10000 times	1200			1000			900			650
Electrical life	AC-3		110				90					65
	AC-4		22				22		17			11
Frequency of operation	AC-3	times/ hour	1200				600
	AC-4		300				300
Connecting capability of main circuit teminal
Flexible wire	1 wire	mm²	1…4			1.5.…6			2.5.…25			4…50
No terminal	2 wire	mm²	1…4			1.5.…6			2.5.….16			4…25
Flexible wire	1 wire	mm²	1…4			1..6			2.5.….25			4…50
With teminals	2 wire	mm²	1…2.5			1…4			2.5..10			4…16
Hard wire	1 wire	mm²	1…4			1.5.…6	1.5.…10		2.5.…25			4…50
No teminal	2 wire	mm²	1…4			1.5..			2.5.…10			4…25
Fastening torque		Nm	1.2			1.8			5			9
Coil
Rated control voltage(Us)	50Hz	V	24,36,48,110,127,220/230,240,380/400,415,440
	50/60Hz	V	24,36,48,110,127,220/230,240,380/400,415,440
Alowed control circuit voltage(Us)	Operation	V	Installation inclination angle±22.5°:85%~110%Us;Installation inclination angle±5°:70%~120%
	Release	V	Installation inclination angle±22.5°:20%~75%Us;Installation inclination angle±5°:20%~65%
Power consumption ofcail	Actuation	VA	60			70			200			200
	Keep	VA	6-9.5			6-9.5			15-20			15-20
	Consumption	W	1-3			1-3			6-10			6-10
Auxiliary contacts
Auxiliary contacts specification		A	11
Rated themal current (Ith)		A	10
Rated operating voltage (Ue)	AC	V	380
	DC	V	220
Rated control capacity	AC-15	VA	360
	DC-13	W	33

Dimensions and Installation Sizes(mm)

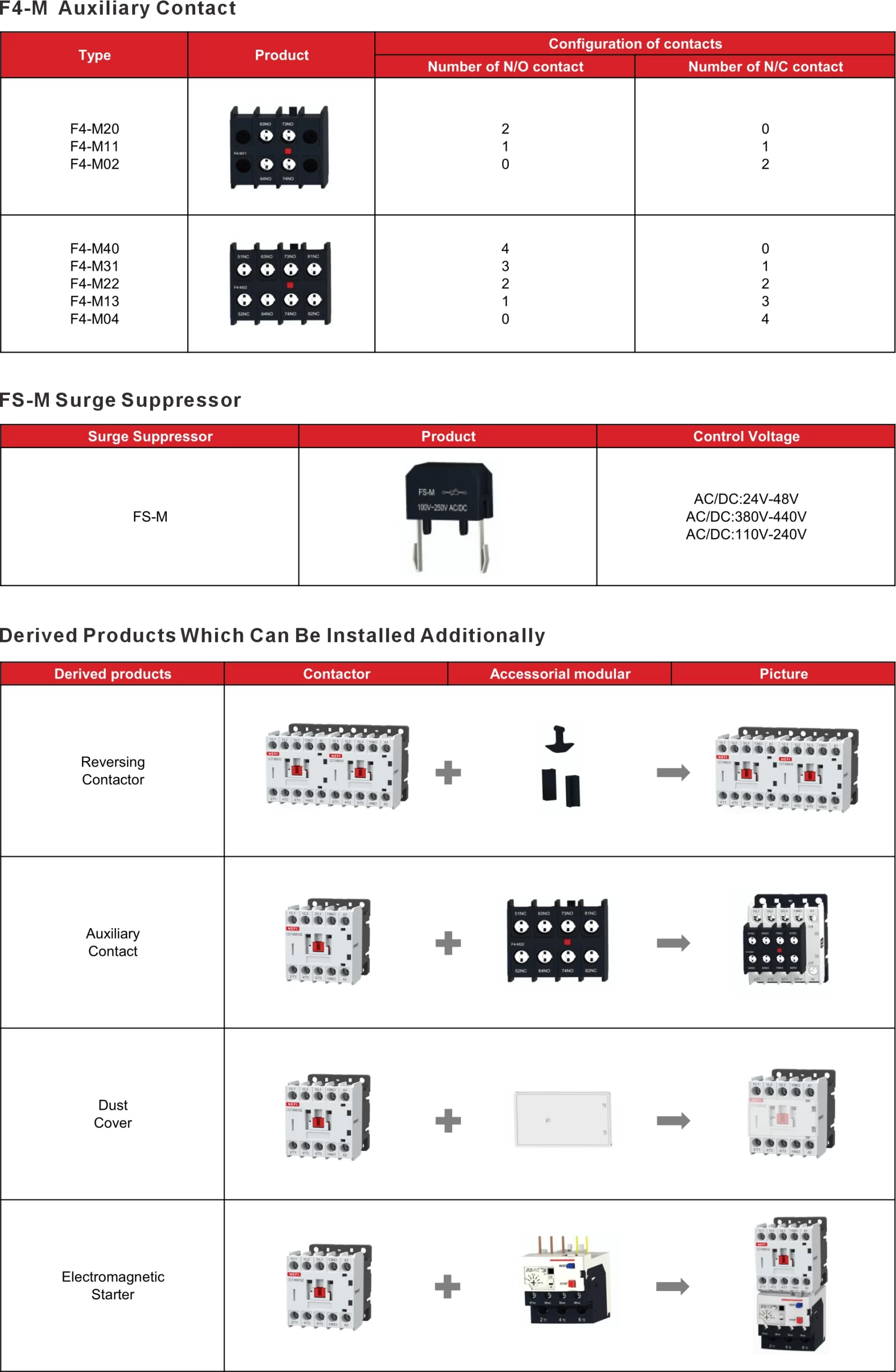

Modularized Accessories
