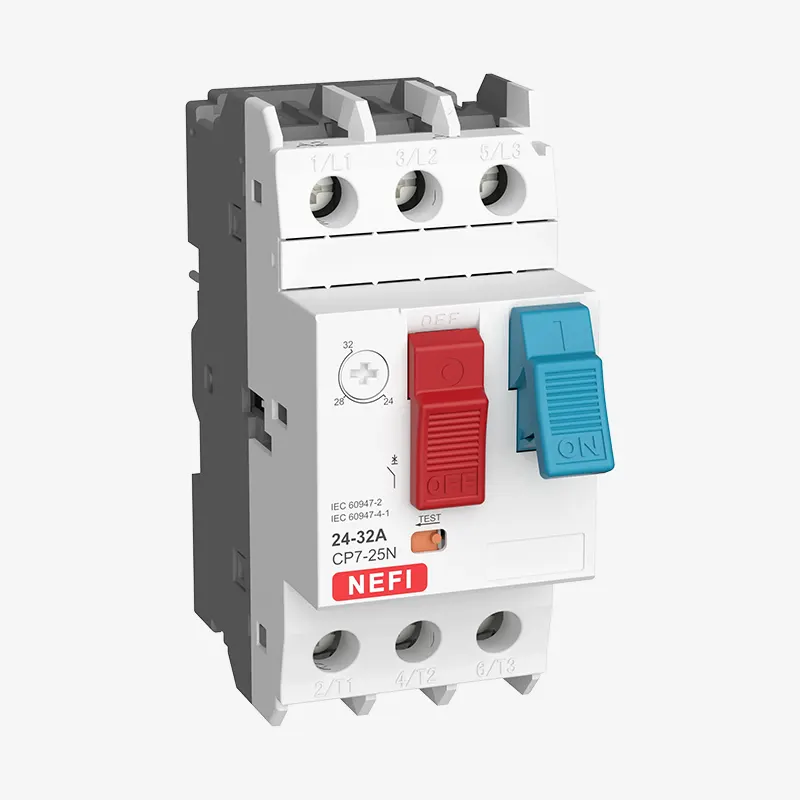

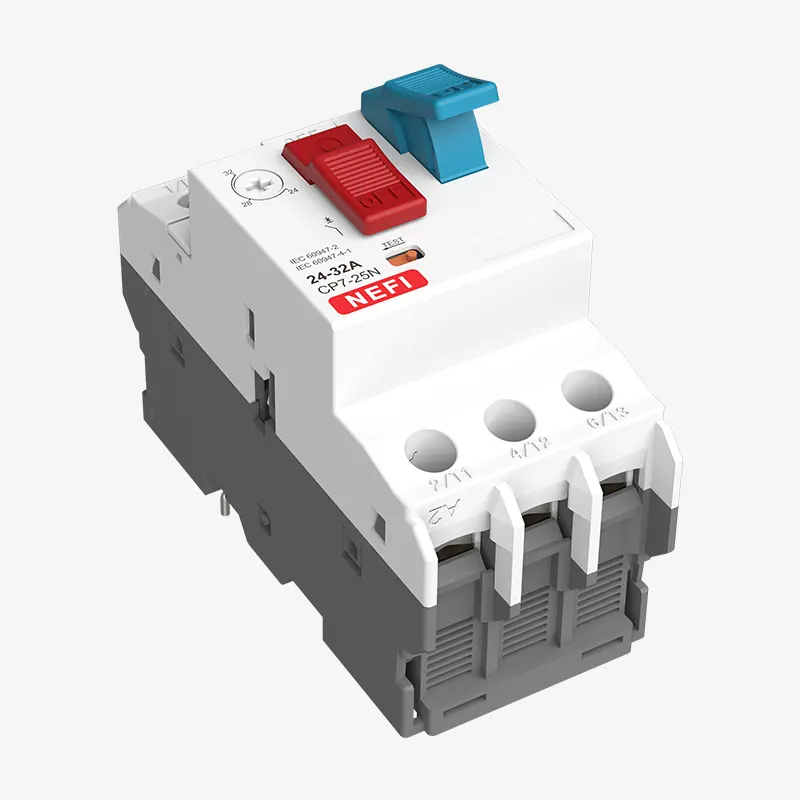

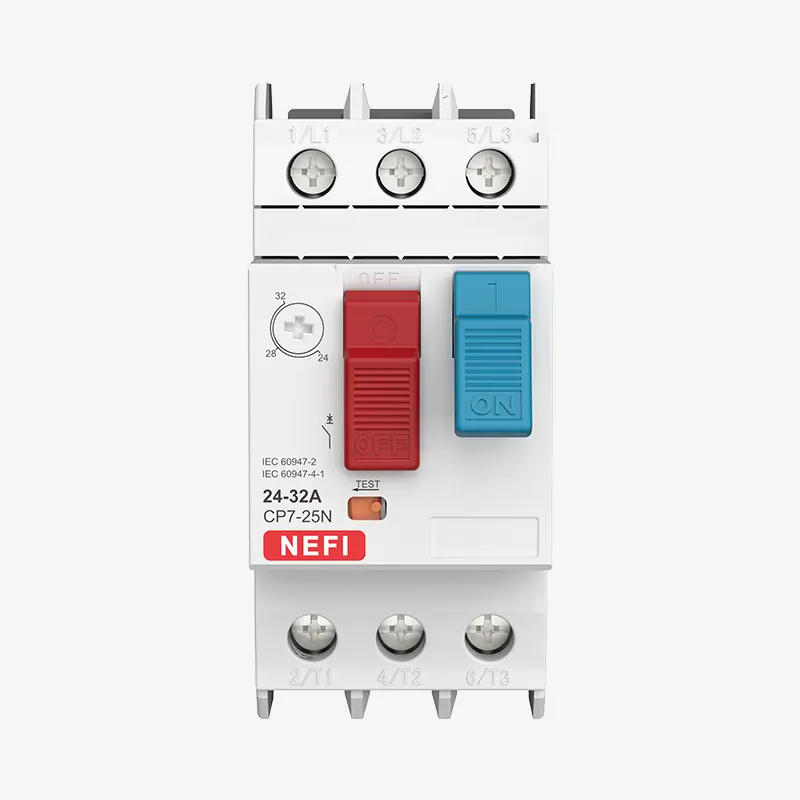

CP7 series AC Motor Starter is suitable for circuits with AC voltage up to 690V and current up to 80A. It provides protection against overload, phase loss, and short circuit, and is used for infrequent starting of three-phase squirrel cage asynchronous motors. It can also protect distribution lines for occasional load switching and serve as an isolator.
Standard: IEC/EN 60947-2, IEC60947-4-1
| Type | Operating and Installation Conditions |
| Installation altitude | ≤2000m |
| Ambient air temperature | -5℃ ~+40℃ average temperature of 24 hours must below +35℃ |
| Relative humidity | below 90% when the temperature is +25℃±5℃ |
| Ambient pollution level | 3 |
| Installation category of the starter | III |
| No. | Multiple of setting current | Acting time | Initial state | Ambient air temperature |
| 1 | 1.0ln | ≤2h non-tripping | Cold state | +40℃±2℃ |
| 2 | 1.2In | ≤2h tripping | Start after 1 | +40℃±2℃ |
| CP7 | – | 25 | 1.6-2.5 | |
| Model | Frame Size | Setting Current Scope | ||
| Motor Starter | 25 80 | Frame Size 25： 0.1-0.16 0.16-0.25 0.25-0.4 0.4-0.63 0.63-1 1-1.6 1.6-2.5 2.5-4 4-6.3 6-10 9-14 13-18 17-23 20-25 24-32 | Frame Size 80： 6-10 10-16 14-20 16-25 25-40 40-63 56-80 | |
| Type | Standard power ratings of 3-phase molors 50/60Hz in categary AC-3 | Current setting range | |||||
| 220V | 380V | 415V | 440V | 500V | 660V | ||
| kW | kW | kW | kW | kW | kW | ||
| CP7-25-ME01 | – | – | – | – | – | – | 0.1-0.16 |
| CP7-25-ME02 | – | – | – | – | – | – | 0.16-0.25 |
| CP7-25-ME03 | – | – | – | – | – | – | 0.25-0.4 |
| CP7-25-ME04 | – | – | – | – | – | 0.37 | 0.4-0.63 |
| CP7-25-ME05 | – | – | – | 0.37 | 0.37 | 0.55 | 0.63-1 |
| CP7-25-ME06 | – | 0.37 | – | 0.55 | 0.75 | 1.1 | 1-1.6 |
| CP7-25-ME07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| CP7-25-ME08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| CP7-25-ME10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| CP7-25-ME14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| CP7-25-ME16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
| CP7-25-ME20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13-18 |
| CP7-25-ME21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
| CP7-25-ME22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| CP7-25-ME32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24-32 |
| CP7-80-ME10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 6-10 |
| CP7-80-ME16 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 10-16 |
| CP7-80-ME20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 14-20 |
| CP7-80-ME25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16-25 |
| CP7-80-ME40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25-40 |
| CP7-80-ME63 | 15 | 30 | 33 | 33 | 40 | 55 | 40-63 |
| CP7-80-ME80 | 22 | 40 | 45 | 45 | 55 | 63 | 56-80 |
| Names of accessories | Code | The types of contacts | Installation place | |
| Instantaneous auxiliary contacts | Ae1 | 1NO/1NC | The front of breaker (1PCS can be installed) | |
| AE11 | 1NO+NC | |||
| AE20 | 2NO | |||
| AN11 | 1NO+1NC | The left of breaker (4PCS can be installed) | ||
| AN20 | 2NO | |||
| Instantaneous auxiliary contacts | AD1010 | Constant-open trouble | NO | |
| AD1001 | NC | |||
| AD0110 | Constant-closed trouble | NO | ||
| AD0101 | NC | |||
| Names of accessories | Code | Voltage | installation place |
| Lack-voltage disjointing | Au115 | 100-127V 50Hz | The right of breaker (1 PCS can be installed) |
| Au225 | 220-240V 50Hz | ||
| Au385 | 380-415V 50Hz | ||
| Division disjointing | As115 | 100-127V 50Hz | |
| As225 | 220-240V 50Hz | ||
| As385 | 380-415V 50Hz |
| Names of accessories | The protection grade of case | Code |
| External installation shell | IP41 | MC01 |
| IP55 | MC02 | |
| IP65 | MCO3 |
