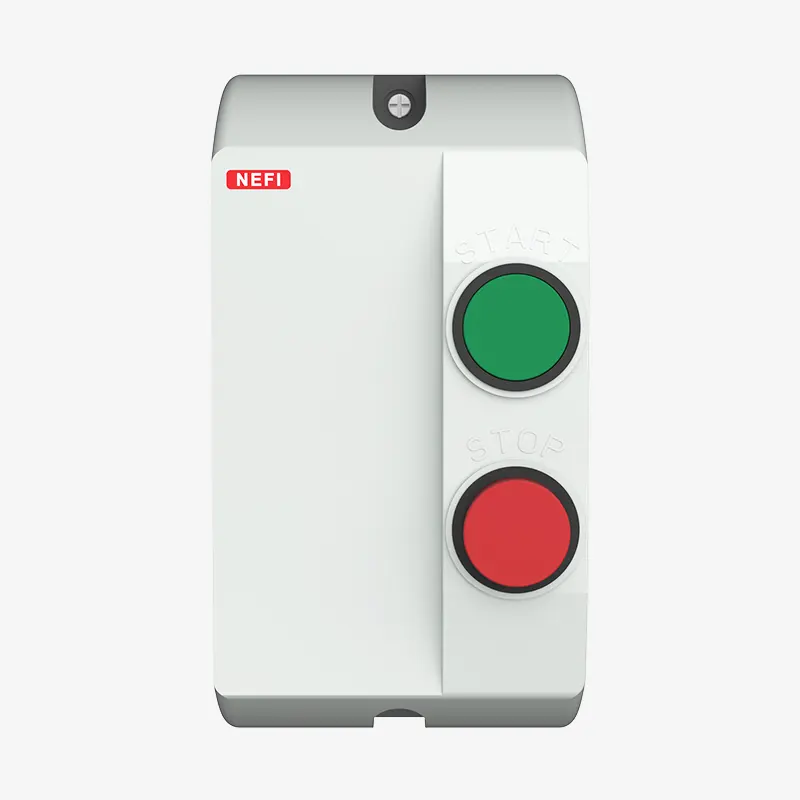

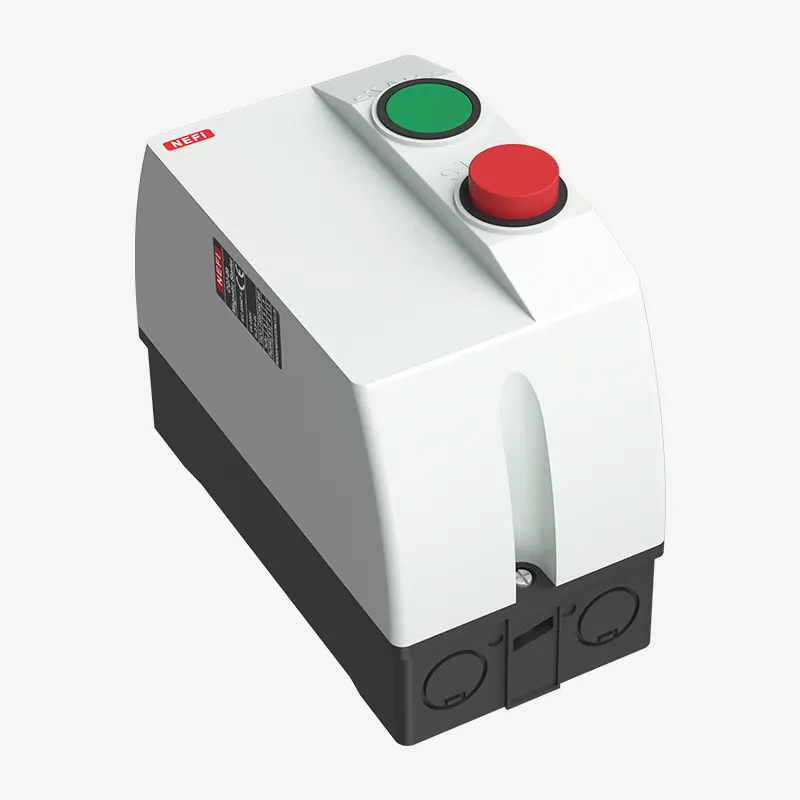

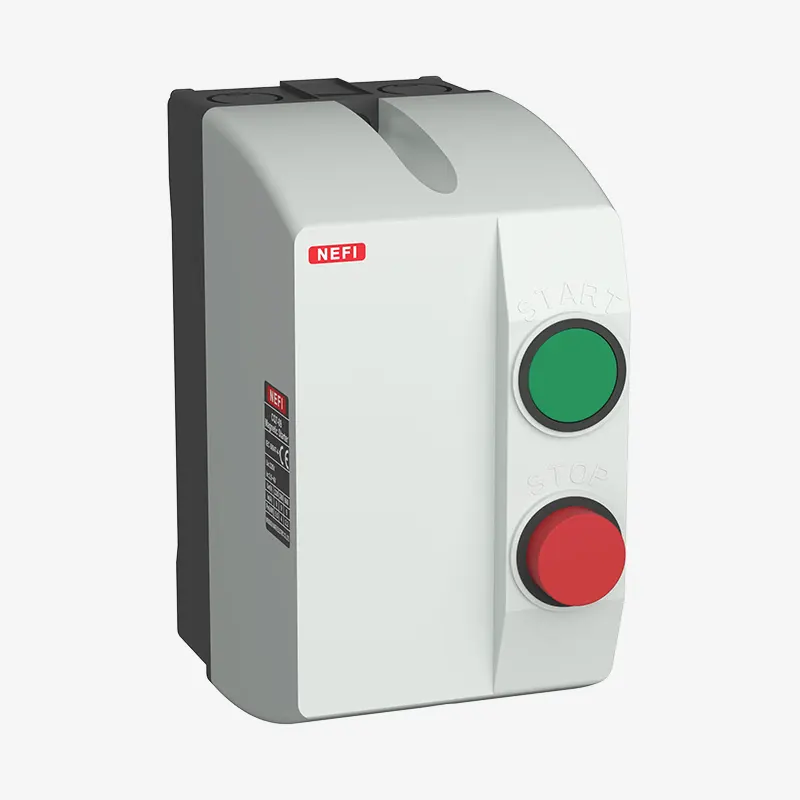

Skip to content CQ7 series magnetic starter is suitable for circuits with rated voltage up to 660V, AC 50Hz or 60Hz, rated control power up to 45kW, and current up to 95A.
It is used to control the direct start and stop of the motor, and the starter, with a thermal overload relay, protects the motor from overload and phase failure.
Standard: IEC/EN 60947-4-1
| Type | Operating and Installation Conditions |
| Altitude | ≤ 2000m |
| Ambient air temperature | -5°C ~ +40°C; 24-hour average temperature ≤ +35°C |
| Relative humidity | The maximum temperature of 40°C, the air relative humidity not exceed 50%,; higher humidity allowed at lower temperatures. In the wettest month, average minimum temperature ≤ +25°C, the max relative humidity of that month should ≤ 90%. If humidity changes as a result of occasional gel generated, should eliminate it. |
| Installation position | Tilt and vertical deviation ≤ 5° |
| Environment | In a non-explosive hazardous medium, and there is no place in the medium that is sufficient to corrode metals and destroy insulation gases and conductor dust. |
| Weather | Where there is rain and snow protection and there is no steam. |
| Shock vibration | Products should be installed and used without severe shake, shock and vibration of the place. |
| CQ7 | – | 25 | 220V | 2.5~4A |
| Model | Frame Size | Coil voltage | Setting Current Scope | |
| Magnetic Starter | 09: 09A | 36V 110V 220V 380V | 2.5~4A, 4~6A, 5.5~8A | |
| 12: 12A | 7~10A, 9~13A | |||
| 18: 18A | 12~18A | |||
| 25: 25A | 17~25A | |||
| 32: 32A | 23~32A | |||
| 40: 40A | 23~32A,30~40A 37~50A, 48~65A 55~70A, 63~80A 80~93A | |||
| 50: 50A | ||||
| 65: 65A | ||||
| 80: 80A | ||||
| 95: 95A |
| Type | Rated current le A | Maximum power duty(kW) | Matched AC contactor type | Matched thermal relay | Setting current range (A) | ||
| AC-3 | |||||||
| 660V | 380V | 220V | |||||
| CQ7-09 | 9 | 5.5 | 4 | 2.2 | CC7-09 | JR28-25 JR28s-25 JR28se-25 | 2.5~4 ,4~6, 5.5~8 |
| CQ7-12 | 12 | 7.5 | 5.5 | 3 | CC7-12 | JR28-25 JR28s-25 JR28se-25 | 7~10, 9~13 |
| CQ7-18 | 18 | 10 | 7.5 | 4 | CC7-18 | 12~18 | |
| CQ7-25 | 25 | 15 | 11 | 5.5 | CC7-25 | 17~25 | |
| CQ7-32 | 32 | 18.5 | 15 | 7.5 | CC7-32 | 23~32 | |
| CQ7-40 | 40 | 18.5 | 18.5 | 11 | CC7-40 | JR28-93 JR28s-93 JR28se-93 | 23~32, 30~40 37~50, 48~65 55~70, 63~80 80~93 |
| CQ7-50 | 50 | 22 | 22 | 15 | CC7-50 | ||
| CQ7-65 | 65 | 30 | 30 | 18.5 | CC7-65 | ||
| CQ7-80 | 80 | 37 | 37 | 22 | CC7-80 | ||
| CQ7-95 | 95 | 45 | 45 | 25 | CC7-90 | ||
The starter features an IP55 protective enclosure, comprising a CC7 AC contactor and a JR28se thermal overload relay.
It uses knockout-type wiring holes for cable entry and exit, allowing the user to knock out and connect up to four holes as needed.
The cover and base are fully separable for easy installation and maintenance.
The XB2 push button assembly provides safe and reliable start/stop control.
Installation requirements：
