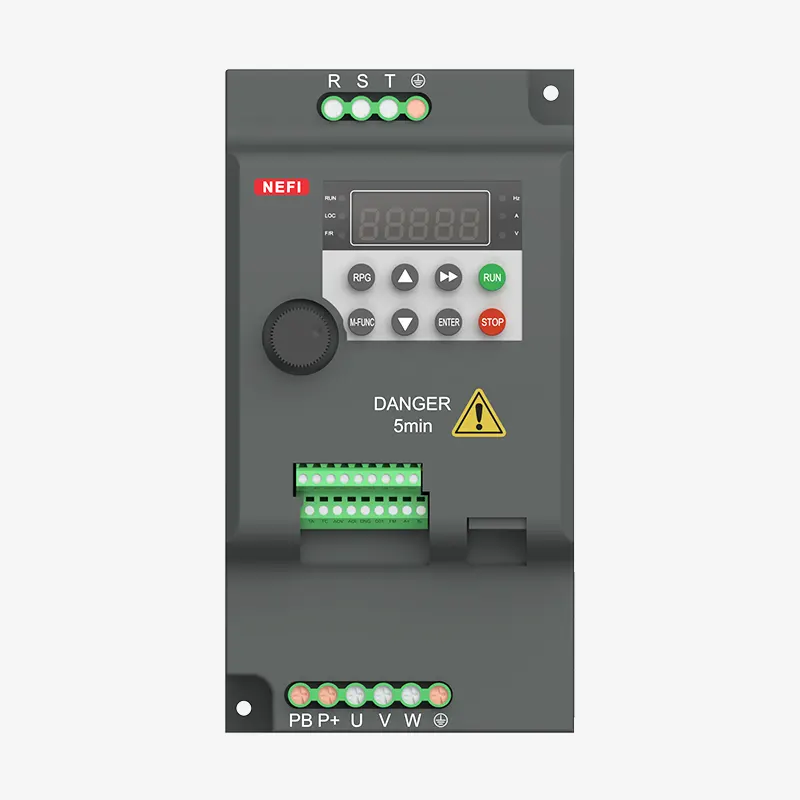

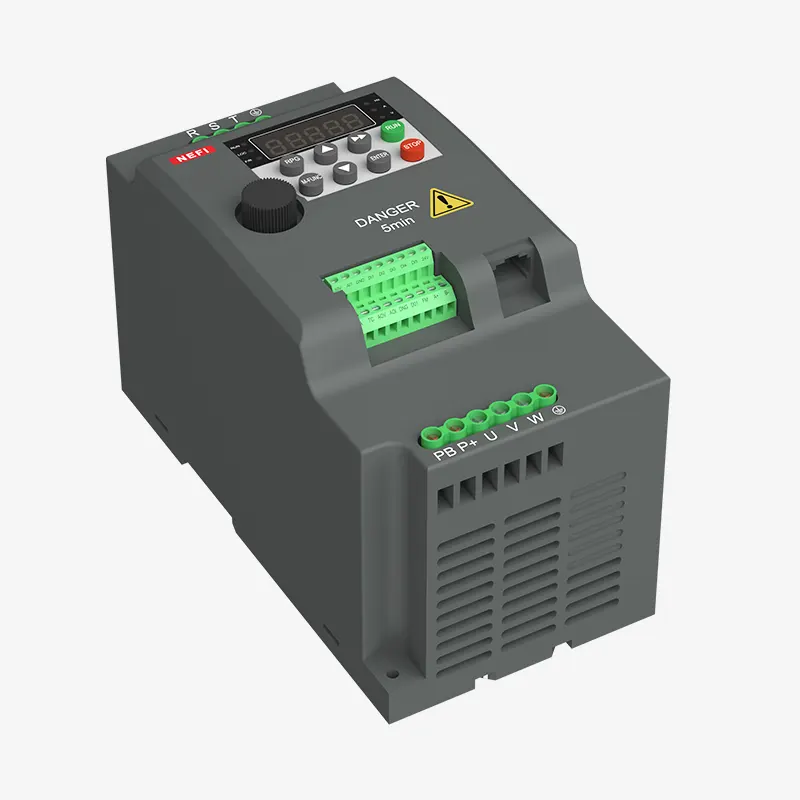

Skip to content The CVF7N Series Mini Inverter is a compact and economical solution designed for a wide range of automation applications.
It is suitable for textile machinery, paper making, machine tools, packaging equipment, fans, water pumps, and other automatic equipment.
With stable performance and easy operation, it ensures efficient and reliable motor control.
| CVF7N | – | 2S | 0007G |
| Model | Input Level | Applicable Motor Power | |
| VFD | 2S: 1 phase 220V | 0004G: 0.4kW | |
| 0007G: 0.75kW | |||
| 0015G: 1.5kW | |||
| 0022G: 2.2kW | |||
| 0055G: 5.5kW | |||
| 4T: 3 phase 380V | 0007G: 0.75kW | ||
| 0015G: 1.5kW | |||
| 0022G: 2.2kW | |||
| 0040G: 4kW | |||
| 0055G: 5.5kW |
| Model | Power Supply Capacity KVA | Input Current A | Output Current A | Adaptable Motor | |
| KW | HP | ||||
| One phase power supply:220V,50HZ/60HZ | |||||
| 2S0007G | 1.5 | 8.2 | 4.0 | 0.75 | 1 |
| 2S0015G | 3.0 | 14.0 | 7.0 | 1.5 | 2 |
| 2S0022G | 4.0 | 23.0 | 9.6 | 2.2 | 3 |
| Three phase power supply:380V,50HZ/60HZ | |||||
| 4T0007G | 1.5 | 3.4 | 2.1 | 0.75 | 1 |
| 4T0015G | 3.0 | 5.0 | 3.8 | 1.5 | 2 |
| 4T0022G | 4.0 | 5.8 | 5.1 | 2.2 | 3 |
| 4T0040G | 5.9 | 10.5 | 9.0 | 3.7 | 5 |
| 4T0055G | 8.9 | 14.6 | 13.0 | 5.5 | 7 |
